The Integrated Stair-Ramp was developed as part of the Meya Cultural Center during the conceptual design phase. It was originally conceived as the main arrival sequence to a central plaza connecting two buildings with different cultural and community functions.
Although this element was not included in the final project, its design was further developed as an independent architectural study. The proposal combines stairs, ramps, landings, and seating areas into a continuous landscape that adapts to the natural slope of the site.
Rather than separating accessible circulation from the main pedestrian route, the ramp is integrated into the geometry of the staircase. This creates a shared and inclusive path while transforming a functional circulation element into a place for movement, rest, gathering, and interaction.

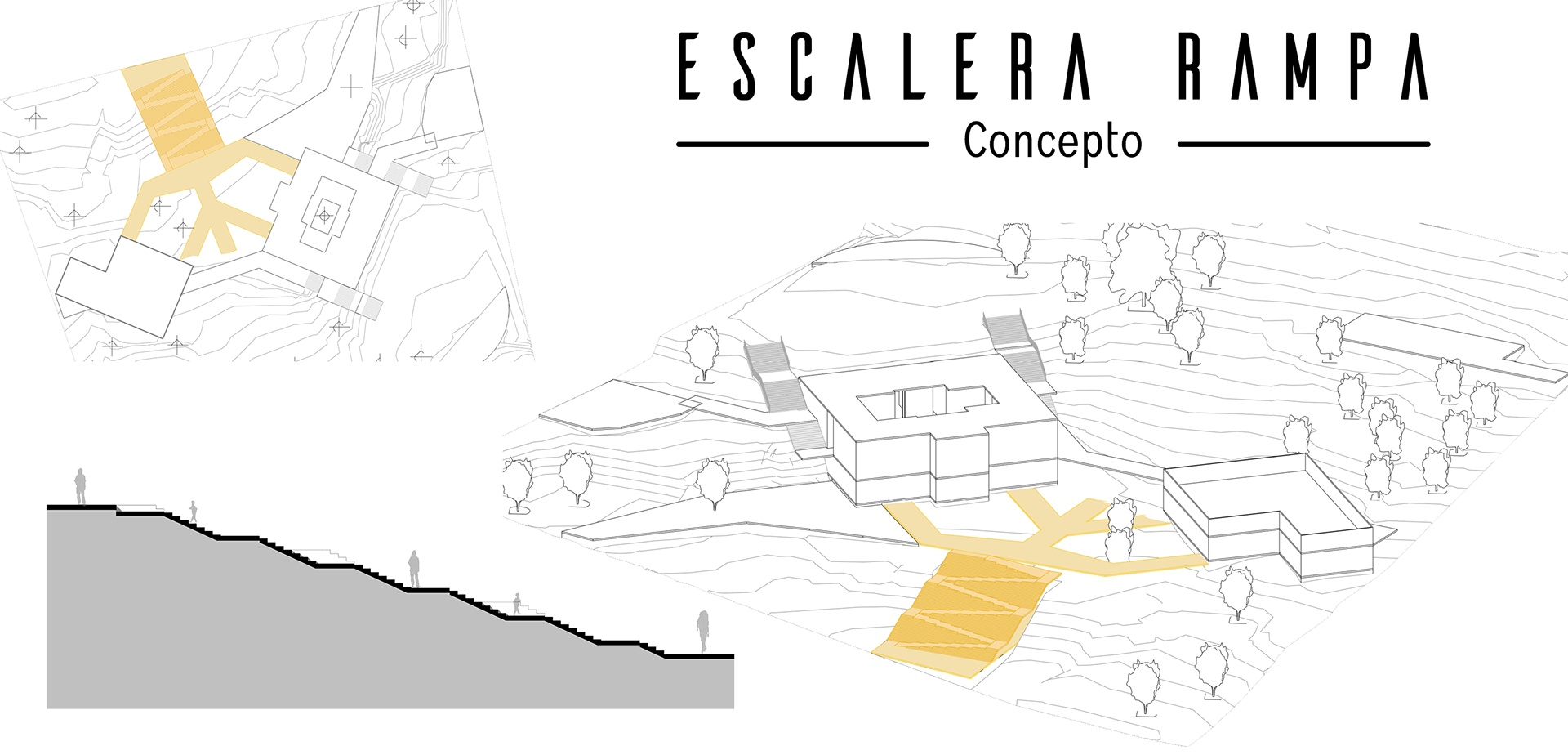

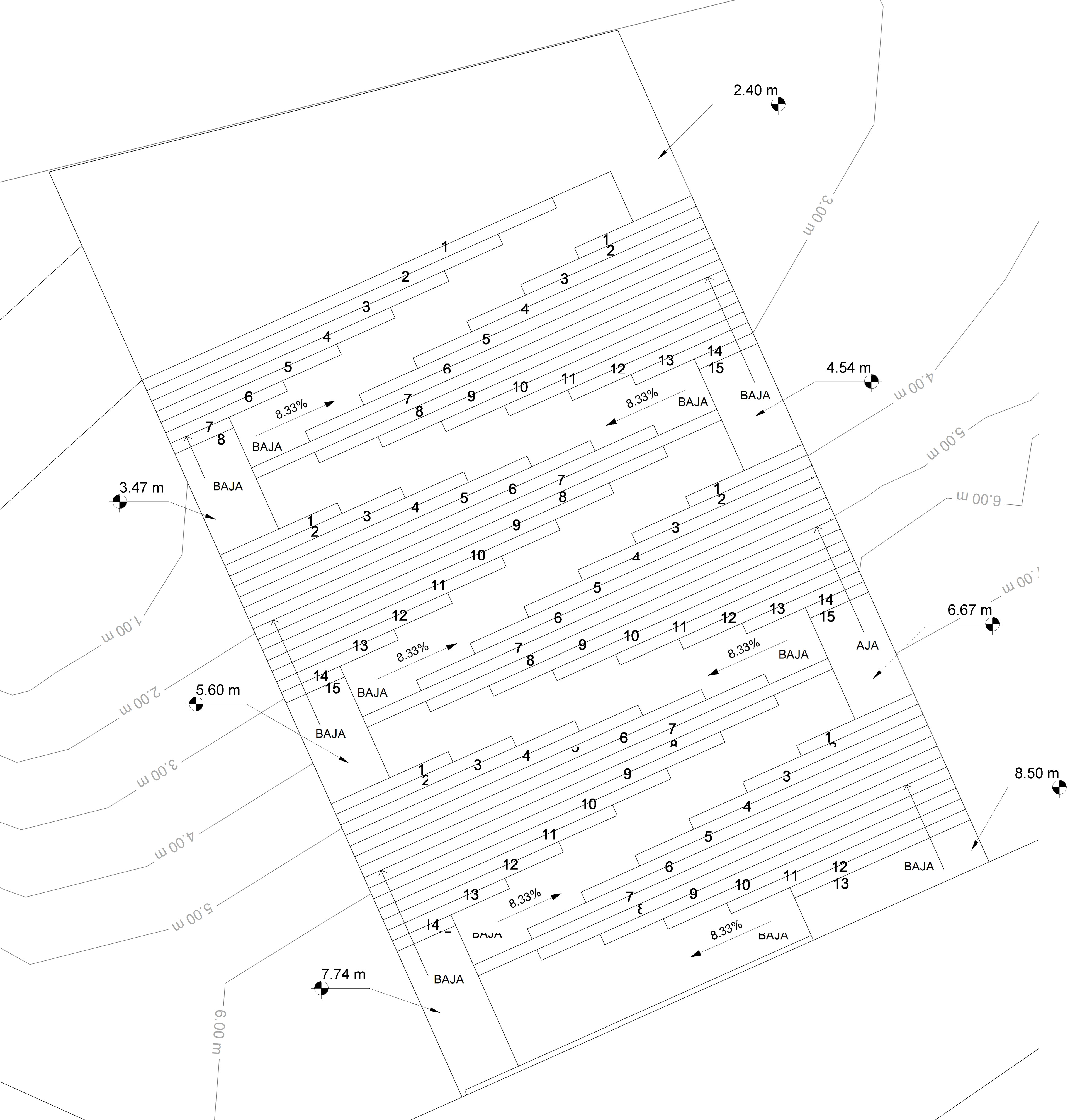

The design was resolved through plan studies, topographic analysis, sections, and three-dimensional diagrams. A continuous slope of 8.33% was coordinated with the rhythm of the steps and intermediate landings, producing a fluid transition between the lower access and the upper plaza.
Design Development
The proposal follows the existing topography through a sequence of stepped platforms and diagonal ramps. These routes create multiple ways of moving across the site while maintaining visual and physical connections with the surrounding landscape.
The geometry was carefully coordinated to ensure that the ramp maintained a consistent slope and connected correctly with each landing. The resulting composition reads as a single architectural surface rather than as two independent circulation systems.
Architectural Visualizations
Unlike many generic stair-ramp solutions, this proposal was developed according to accessibility criteria and the specific elevation changes of the site. The integration of ramps, stairs, landings, and landscaped areas creates a continuous and visually unified public space.
The final visualizations illustrate how the element could function not only as an accessible route, but also as an urban terrace and gathering area within the cultural center.
